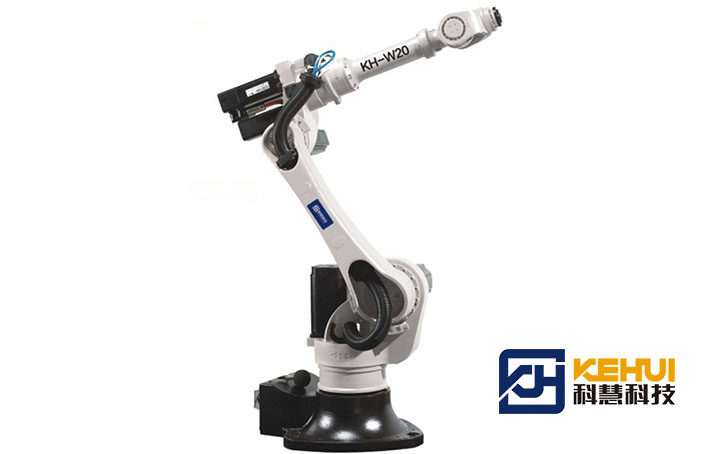

KH-W20 Welding Robot Auto Welding Machine Max Working Radius: 1588mm

Name: KHW20 Welding Robot Auto Welding Machine Max Working Radius 1588mm
Brand: Kehui Technology
Price: 1 USD

Brand Name : Kehui Technology

Model Number : KH-W20

Certification : ISO9001, CE, CU-TR

Place of Origin : Henan, China

MOQ : 1 production line

Payment Terms : L/C, T/T, Western Union, MoneyGramSupply

Supply Ability : 20 sets per year

Delivery Time : 180 days after payment

Packaging Details : in wooden box

Wrist Payload : 20kg

Max Working Radius : 1588mm

DOF : 6

Mass(weight) : 246kg

Working Temperature : 0-40°

Contact Now

The KH-W series robot has a payload of 20Kg, and an effective working radius of 1588mm. A high-precision harmonic reducer for the wrist joint. The compact structure and high-precision reducer are installed in each joint.

Application:

Assembly, welding, material handling, palletizing, die casting, polishing.

Features of KH-W20
Light weight structure, effective loading: 20KG, max. working radius: 1588mm, robot joints adopts high precision reducer.
1. Greater flexibility, more stable performance, lower energy consumption
2. With high performance throughput
3. Long working hours
4. Fixed automation
5. High running speed
6. Highly optimized for general use
7. Modular mechanical structure design

Application
Materials handing and palletizing, assembling, casting polishing

KH series universal robot is compact in structure. All joints are installed with high precision reducer. High speed joint motion ensures robot's flexible working in narrow space. The robot has felxible installation ways. It can do handling, palletizing, assembly, etc.

KH-W20 Welding Robot Auto Welding Machine Max Working Radius: 1588mm

Model		KH-W20
Wrist Payload		20kg
Max Working Radius		1588mm
DOF		6
Maximum Speed	J1	150°/s
	J2	120°/s
	J3	120°/s
	J4	360°/s
	J5	300°/s
	J6	450°/s
Maximum Operation Area	J1	±165°
	J2	+130°~-65°
	J3	+75°~-190°
	J4	±360°
	J5	±120°
	J6	±360°
Mass(weight)		246kg
Position Repeat Accuracy		±0.05mm
Working Temperature		0-40°
